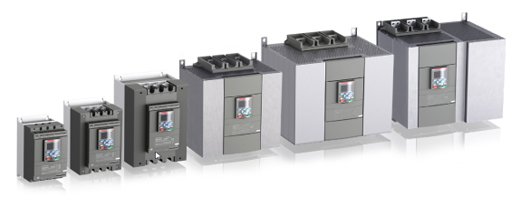

產品介紹
? 主回路電壓
n 208-600V AC
n 208-690V AC
? 運行環境溫度:
n -20-40攝氏度無降容
n 40-60攝氏度：每1攝氏度降容0.8%
? 海拔：
n 1000米以上每100米降容0.7%
Highlight 特點
? 跛行模式 & 帶防護涂層電路板--避免計劃外停機，提高生產效率
? 電機低速運轉和制動功能--通過特殊應用特性來增加過程控制的靈活性
【服務熱線】： 0591-87951280
Normal Use | Heavy Duty Use | ||||||
Code No. | Type | 常規啟動，等級10,外接方式 | 重載啟動，級別30，外接方式 | ||||
產品代號 | 產品型號 | Pe（kW） | Pe（kW） | Ie（A） | Pe（kW） | Pe（kW） | Ie（A） |
電機額定功率（400V) | 電機額定功率(500V) | 額定輸出電流 | 電機額定功率（400V) | 電機額定功率(500V) | 額定輸出電流 | ||
1SFA898103R7000 | PSTX30-600-70 | 15 | 18.5 | 30 | 11 | 15 | 22 |
1SFA898104R7000 | PSTX37-600-70 | 18.5 | 22 | 37 | 15 | 18.5 | 30 |
1SFA898105R7000 | PSTX45-600-70 | 22 | 25 | 45 | 18.5 | 22 | 37 |
1SFA898106R7000 | PSTX60-600-70 | 30 | 37 | 60 | 22 | 25 | 45 |
1SFA898107R7000 | PSTX72-600-70 | 37 | 45 | 72 | 30 | 37 | 60 |
1SFA898108R7000 | PSTX85-600-70 | 45 | 55 | 85 | 37 | 45 | 72 |
1SFA898109R7000 | PSTX105-600-70 | 55 | 75 | 106 | 45 | 55 | 85 |
1SFA898110R7000 | PSTX142-600-70 | 75 | 90 | 143 | 55 | 75 | 106 |
1SFA898111R7000 | PSTX170-600-70 | 90 | 110 | 171 | 75 | 90 | 143 |
1SFA898112R7000 | PSTX210-600-70 | 110 | 132 | 210 | 90 | 110 | 171 |
1SFA898113R7000 | PSTX250-600-70 | 132 | 160 | 250 | 110 | 132 | 210 |
1SFA898114R7000 | PSTX300-600-70 | 160 | 200 | 300 | 132 | 160 | 250 |
1SFA898115R7000 | PSTX370-600-70 | 200 | 257 | 370 | 160 | 200 | 300 |
1SFA898116R7000 | PSTX470-600-70 | 250 | 315 | 470 | 200 | 257 | 370 |
1SFA898117R7000 | PSTX570-600-70 | 315 | 400 | 570 | 250 | 315 | 470 |
1SFA898118R7000 | PSTX720-600-70 | 400 | 500 | 720 | 315 | 400 | 570 |
1SFA898119R7000 | PSTX840-600-70 | 450 | 600 | 840 | 400 | 500 | 720 |
1SFA898120R7000 | PSTX1050-600-70 | 560 | 730 | 1050 | 450 | 600 | 840 |
1SFA898121R7000 | PSTX1250-600-70 | 710 | 880 | 1200 | 560 | 730 | 1050 |
1SFA898203R7000 | PSTX30-690-70 | 18.5 | 25 | 30 | 15 | 18.5 | 22 |
1SFA898204R7000 | PSTX37-690-70 | 22 | 30 | 37 | 18.5 | 25 | 30 |
1SFA898205R7000 | PSTX45-690-70 | 25 | 37 | 45 | 22 | 30 | 37 |
1SFA898206R7000 | PSTX60-690-70 | 37 | 55 | 60 | 25 | 37 | 44 |
1SFA898207R7000 | PSTX72-690-70 | 45 | 59 | 72 | 37 | 55 | 60 |
1SFA898208R7000 | PSTX85-690-70 | 55 | 75 | 85 | 45 | 59 | 72 |
1SFA898209R7000 | PSTX105-690-70 | 75 | 90 | 106 | 55 | 75 | 85 |
1SFA898210R7000 | PSTX142-690-70 | 90 | 132 | 143 | 75 | 90 | 106 |
1SFA898211R7000 | PSTX170-690-70 | 110 | 160 | 171 | 90 | 132 | 143 |
1SFA898212R7000 | PSTX210-690-70 | 132 | 184 | 210 | 110 | 160 | 171 |
1SFA898213R7000 | PSTX250-690-70 | 160 | 220 | 250 | 132 | 184 | 210 |
1SFA898214R7000 | PSTX300-690-70 | 200 | 257 | 300 | 160 | 220 | 250 |
1SFA898215R7000 | PSTX370-690-70 | 257 | 355 | 370 | 200 | 257 | 300 |
1SFA898216R7000 | PSTX470-690-70 | 315 | 450 | 470 | 257 | 355 | 370 |
1SFA898217R7000 | PSTX570-690-70 | 400 | 560 | 570 | 315 | 450 | 470 |
1SFA898218R7000 | PSTX720-690-70 | 500 | 710 | 720 | 400 | 560 | 570 |
1SFA898219R7000 | PSTX840-690-70 | 600 | 800 | 840 | 500 | 710 | 720 |
1SFA898220R7000 | PSTX1050-690-70 | 730 | 1000 | 1050 | 600 | 800 | 840 |
1SFA898221R7000 | PSTX1250-690-70 | 880 | 1200 | 1250 | 730 | 1000 | 1050 |
