產品介紹
? ABB專用型變頻器用于水和污水處理行業(yè)
Highlight 特點
? 泵的控制功能
? 無傳感器流量計算
? 柔性注入功能
? 睡眠和增壓功能
? 泵清洗功能
? 多泵控制功能
【服務熱線】： 0591-87951280

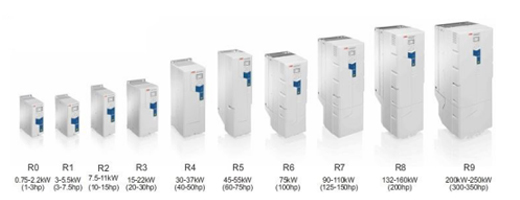

Nominal ratings | Maximum | Light-overload use | Heavy-duty use | Frame | ||||
Type | 額定值 | 最大輸出電流 | 輕載應用 | 重載應用 | Size | |||
IN | PN | Imax | ILd | PLd | IHd | PHd | ||
產品型號 | 輸出電流 | 電機功率 | 最大電流 | 輸出電流 | 電機功率 | 輸出電流 | 電機功率 | 外形 |
(A) | (kW) | (A) | (A) | (kW) | (A) | (kW) | 尺寸 | |
ACQ580-01-02A7-4 | 2.6 | 0.75 | 3.2 | 2.5 | 0.75 | 1.8 | 0.55 | R1 |
ACQ580-01-03A4-4 | 3.3 | 1.1 | 4.7 | 3.1 | 1.1 | 2.6 | 0.75 | |
ACQ580-01-04A1-4 | 4 | 1.5 | 5.9 | 3.8 | 1.5 | 3.3 | 1.1 | |
ACQ580-01-05A7-4 | 5.6 | 2.2 | 7.2 | 5.3 | 2.2 | 4 | 1.5 | |
ACQ580-01-07A3-4 | 7.2 | 3 | 10.1 | 6.8 | 3 | 5.6 | 2.2 | |
ACQ580-01-09A5-4 | 9.4 | 4 | 13 | 8.9 | 4 | 7.2 | 3 | |
ACQ580-01-12A7-4 | 12.6 | 5.5 | 14.1 | 12 | 5.5 | 9.4 | 4 | |
ACQ580-01-018A-4 | 17 | 7.5 | 22.7 | 16.2 | 7.5 | 12.6 | 5.5 | R2 |
ACQ580-01-026A-4 | 25 | 11 | 30.6 | 23.8 | 11 | 17 | 7.5 | |
ACQ580-01-033A-4 | 32 | 15 | 44.3 | 30.4 | 15 | 24.6 | 11 | R3 |
ACQ580-01-039A-4 | 38 | 18.5 | 56.9 | 36.1 | 18.5 | 31.6 | 15 | |
ACQ580-01-046A-4 | 45 | 22 | 67.9 | 42.8 | 22 | 37.7 | 18.5 | |
ACQ580-01-062A-4 | 62 | 30 | 76 | 58 | 30 | 44.6 | 22 | R4 |
ACQ580-01-073A-4 | 73 | 37 | 104 | 68.4 | 37 | 61 | 30 | |
ACQ580-01-088A-4 | 88 | 45 | 122 | 83 | 45 | 72 | 37 | R5 |
ACQ580-01-106A-4 | 106 | 55 | 148 | 100 | 55 | 87 | 45 | |
ACQ580-01-145A-4 | 145 | 75 | 178 | 138 | 75 | 105 | 55 | R6 |
ACQ580-01-169A-4 | 169 | 90 | 247 | 161 | 90 | 145 | 75 | R7 |
ACQ580-01-206A-4 | 206 | 110 | 287 | 196 | 110 | 169 | 90 | |
ACQ580-01-246A-4 | 246 | 132 | 350 | 234 | 132 | 206 | 110 | R8 |
ACQ580-01-293A-4 | 293 | 160 | 418 | 278 | 160 | 246* | 132 | |
ACQ580-01-363A-4 | 363 | 200 | 498 | 345 | 200 | 293 | 160 | R9 |
ACQ580-01-430A-4 | 430 | 250 | 545 | 400 | 200 | 363** | 200 | |
ACQ580-04-505A-4 | 505 | 250 | 560 | 485 | 250 | 361 | 200 | R10 |
ACQ580-04-585A-4 | 585 | 315 | 730 | 575 | 315 | 429 | 250 | |
ACQ580-04-650A-4 | 650 | 355 | 730 | 634 | 355 | 477 | 250 | |
ACQ580-04-725A-4 | 725 | 400 | 1020 | 715 | 400 | 566 | 315 | R11 |
ACQ580-04-820A-4 | 820 | 450 | 1020 | 810 | 450 | 625 | 355 | |
ACQ580-04-880A-4 | 880 | 500 | 1100 | 865 | 500 | 725*** | 400 | |
ACQ580-01-02A7-4+B056 | 2.6 | 0.75 | 3.2 | 2.5 | 0.75 | 1.8 | 0.55 | R1 |
ACQ580-01-03A4-4+B056 | 3.3 | 1.1 | 4.7 | 3.1 | 1.1 | 2.6 | 0.75 | |
ACQ580-01-04A1-4+B056 | 4 | 1.5 | 5.9 | 3.8 | 1.5 | 3.3 | 1.1 | |
ACQ580-01-05A7-4+B056 | 5.6 | 2.2 | 7.2 | 5.3 | 2.2 | 4 | 1.5 | |
ACQ580-01-07A3-4+B056 | 7.2 | 3 | 10.1 | 6.8 | 3 | 5.6 | 2.2 | |
ACQ580-01-09A5-4+B056 | 9.4 | 4 | 13 | 8.9 | 4 | 7.2 | 3 | |
ACQ580-01-12A7-4+B056 | 12.6 | 5.5 | 14.1 | 12 | 5.5 | 9.4 | 4 | |
ACQ580-01-018A-4+B056 | 17 | 7.5 | 22.7 | 16.2 | 7.5 | 12.6 | 5.5 | R2 |
ACQ580-01-026A-4+B056 | 25 | 11 | 30.6 | 23.8 | 11 | 17 | 7.5 | |
ACQ580-01-033A-4+B056 | 32 | 15 | 44.3 | 30.4 | 15 | 24.6 | 11 | R3 |
ACQ580-01-039A-4+B056 | 38 | 18.5 | 56.9 | 36.1 | 18.5 | 31.6 | 15 | |
ACQ580-01-046A-4+B056 | 45 | 22 | 67.9 | 42.8 | 22 | 37.7 | 18.5 | |
ACQ580-01-062A-4+B056 | 62 | 30 | 76 | 58 | 30 | 44.6 | 22 | R4 |
ACQ580-01-073A-4+B056 | 73 | 37 | 104 | 68.4 | 37 | 61 | 30 | |
ACQ580-01-088A-4+B056 | 88 | 45 | 122 | 83 | 45 | 72 | 37 | R5 |
ACQ580-01-106A-4+B056 | 106 | 55 | 148 | 100 | 55 | 87 | 45 | |
ACQ580-01-145A-4+B056 | 145 | 75 | 178 | 138 | 75 | 105 | 55 | R6 |
ACQ580-01-169A-4+B056 | 169 | 90 | 247 | 161 | 90 | 145 | 75 | R7 |
ACQ580-01-206A-4+B056 | 206 | 110 | 287 | 196 | 110 | 169 | 90 | |
ACQ580-01-246A-4+B056 | 246 | 132 | 350 | 234 | 132 | 206 | 110 | R8 |
ACQ580-01-293A-4+B056 | 293 | 160 | 418 | 278 | 160 | 246* | 132 | |
ACQ580-01-363A-4+B056 | 363 | 200 | 498 | 345 | 200 | 293 | 160 | R9 |
ACQ580-01-430A-4+B056 | 430 | 250 | 545 | 400 | 200 | 363** | 200 | |
